Products

LED Display
Product Name : LED Display

Q'ty :





    SizePart No.Emitted
    Color.
    ChipElectro-Optical
    Characteristics
    (IF= 10mA)
    Dimension
    MaterialλD
    (nm)
    Vf (V)Iv (mcd)
    Common
    Anode
    Common Cathode
    Typ.Max.Typ.
    0.3"
    LS0304G LS0303G Green GaP 570 2.1 2.6 2.2 B1
    LS0304Y LS0303Y Yellow GaAsP/GaP 590 2.1 2.6 2.1
    LS0304A LS0303A Orange GaAsP / GaP 627 2.0 2.6 2.2
    LS0304SR LS0303SR Red GaAlAs 643 1.85 2.5 4.0
    0.36"
    LS0366G LS0365G Green GaP 570 2.1 2.6 2.2 B2
    LS0366Y LS0365Y Yellow GaAsP/GaP 590 2.1 2.6 2.1
    LS0366A LS0365A Orange GaAsP / GaP 627 2.0 2.6 2.2
    LS0366SR LS0365SR Red GaAlAs 643 1.85 2.5 4.0
    0.4"
    LS0406G LS0405G Green GaP 570 2.1 2.6 2.2 B3
    LS0406Y LS0405Y Yellow GaAsP/GaP 590 2.1 2.6 2.1
    LS0406A LS0405A Orange GaAsP / GaP 627 2.0 2.6 2.2
    LS0406SR LS0405SR Red GaAlAs 643 1.85 2.5 4.0
    0.5"
    LS0506G LS0505G Green GaP 570 2.1 2.6 2.4 B4
    LS0506Y LS0505Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LS0506A LS0505A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LS0506SR LS0505SR Red GaAlAs 643 1.85 2.5 4.2
    0.56"

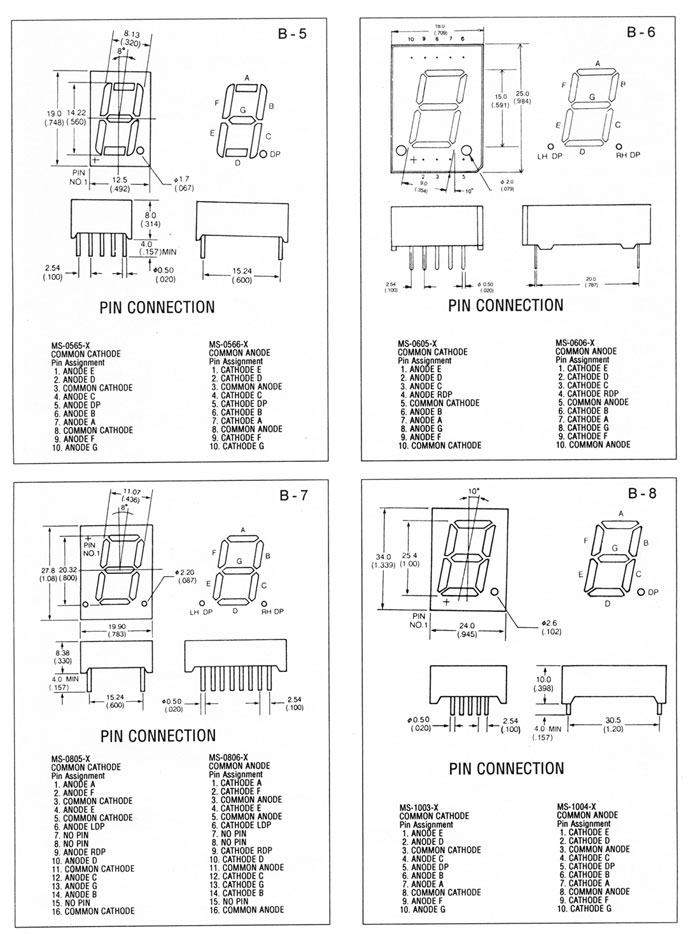

    LS0566G LS0565G Green GaP 570 2.1 2.6 2.4 B5
    LS0566Y LS0565Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LS0566A LS0565A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LS0566SR LS0565SR Red GaAlAs 643 1.85 2.5 4.2
    0.6"
    LS0606G LS0605G Green GaP 570 2.1 2.6 2.4 B6
    LS0606Y LS0605Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LS0606A LS0605A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LS0606SR LS0605SR Red GaAlAs 643 1.85 2.5 4.2
    0.8"
    LS0804G LS0803G Green GaP 570 2.1 2.6 2.5 B7
    LS0804Y LS0803Y Yellow GaAsP/GaP 590 2.1 2.6 2.4
    LS0804A LS0803A Orange GaAsP / GaP 627 2.0 2.6 2.5
    LS0804SR LS0803SR Red GaAlAs 643 1.85 2.5 4.3
    1.0"
    LS1004G LS1003G Green GaP 570 2.1 2.6 2.5 B8
    LS1004Y LS1003Y Yellow GaAsP/GaP 590 2.1 2.6 2.4
    LS1004A LS1003A Orange GaAsP / GaP 627 2.0 2.6 2.5
    LS1004SR LS1003SR Red GaAlAs 643 1.85 2.5 4.3
    0.3"
    LD0304G LD0303G Green GaP 570 2.1 2.6 2.2 B9
    LD0304Y LD0303Y Yellow GaAsP/GaP 590 2.1 2.6 2.1
    LD0304A LD0303A Orange GaAsP / GaP 627 2.0 2.6 2.2
    LD0304SR LD0303SR Red GaAlAs 643 1.85 2.5 4.0
    0.4"
    LD0406G LD0405G Green GaP 570 2.1 2.6 2.2 B10
    LD0406Y LD0405Y Yellow GaAsP/GaP 590 2.1 2.6 2.1
    LD0406A LD0405A Orange GaAsP / GaP 627 2.0 2.6 2.2
    LD0406SR LD0405SR Red GaAlAs 643 1.85 2.5 4.0
    0.5"
    LD0506G LD0505G Green GaP 570 2.1 2.6 2.4 B11
    LD0506Y LD0505Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LD0506A LD0505A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LD0506SR LD0505SR Red GaAlAs 643 1.85 2.5 4.2
    0.54"
    LD054A6G LD05A5G Green GaP 570 2.1 2.6 2.4 B12
    LD054A6Y LLD05A5Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LD054A6A LD05A5A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LD054A6SR LD05A5SR Red GaAlAs 643 1.85 2.5 4.2
    0.56"
    LD0566G LD0565G Green GaP 570 2.1 2.6 2.4 B13
    LD0566Y LD0565Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LD0566A LD0565A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LD0566SR LD0565SR Red GaAlAs 643 1.85 2.5 4.2
    0.56"
    LT0566G LT0565G Green GaP 570 2.1 2.6 2.4 B14
    LT0566Y LT0565Y Yellow GaAsP/GaP 590 2.1 2.6 2.3
    LT0566A LT0565A Orange GaAsP / GaP 627 2.0 2.6 2.4
    LT0566SR LT0565SR Red GaAlAs 643 1.85 2.5 4.2

    The website contains only the standard LEDs we manufacture. Please contact DAINA for unfounded or custom-made items.
